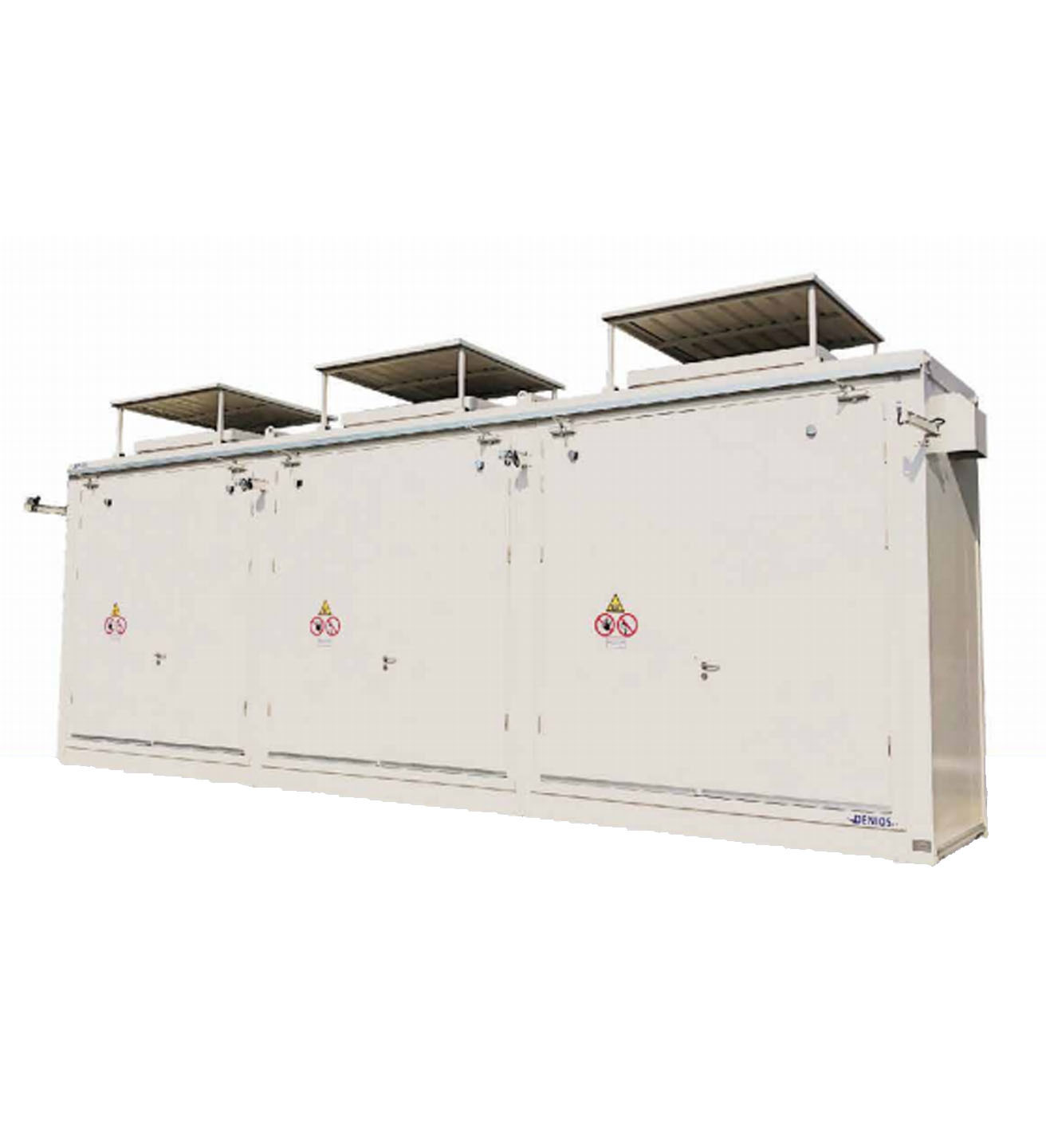

Stacked Refractory Storage Box FBM 914

FBM 914 is equipped with double doors to store up to 48 drums or 12 ton drums.

Tailored for you

According to the use requirements of FBM storage system, additional equipment can be selected to meet the operation requirements.

For example:

Heating/air conditioning system

refrigerate

be explosion-proof

fire detection

fire-extinguishing system

The leakage tray is lined with PP for storing corrosive substances.

More configurations

Product characteristics

FBM storage system can provide you with a full range of devices and a variety of options:

Suitable for indoor and outdoor use

Single-shelf and double-shelf. One-shelf or two-shelf single and double-row storage

Thermal insulation: material grade A, thermal insulation value U value: 0.42W /(m2 K) Shelf bearing capacity: 1250 kg/m2.

Snow load design sk = 2.5 kN /m2.

Wind-loaded dynamic load design qw = 0.5 kN/m2.

Product advantage

Internal and external double-sided fire resistance certification

The dye penetration test of the drain tray meets the standard of EN ISO3452-1.

Galvanized steel parts, anticorrosive and antirust.

Lengthened design, to meet a large number of hazardous chemicals storage.
