Stacked Refractory Storage Box FBM 614

Tailored for you

According to the use requirements of FBM storage system, additional equipment can be selected to meet the operation requirements.

For example:

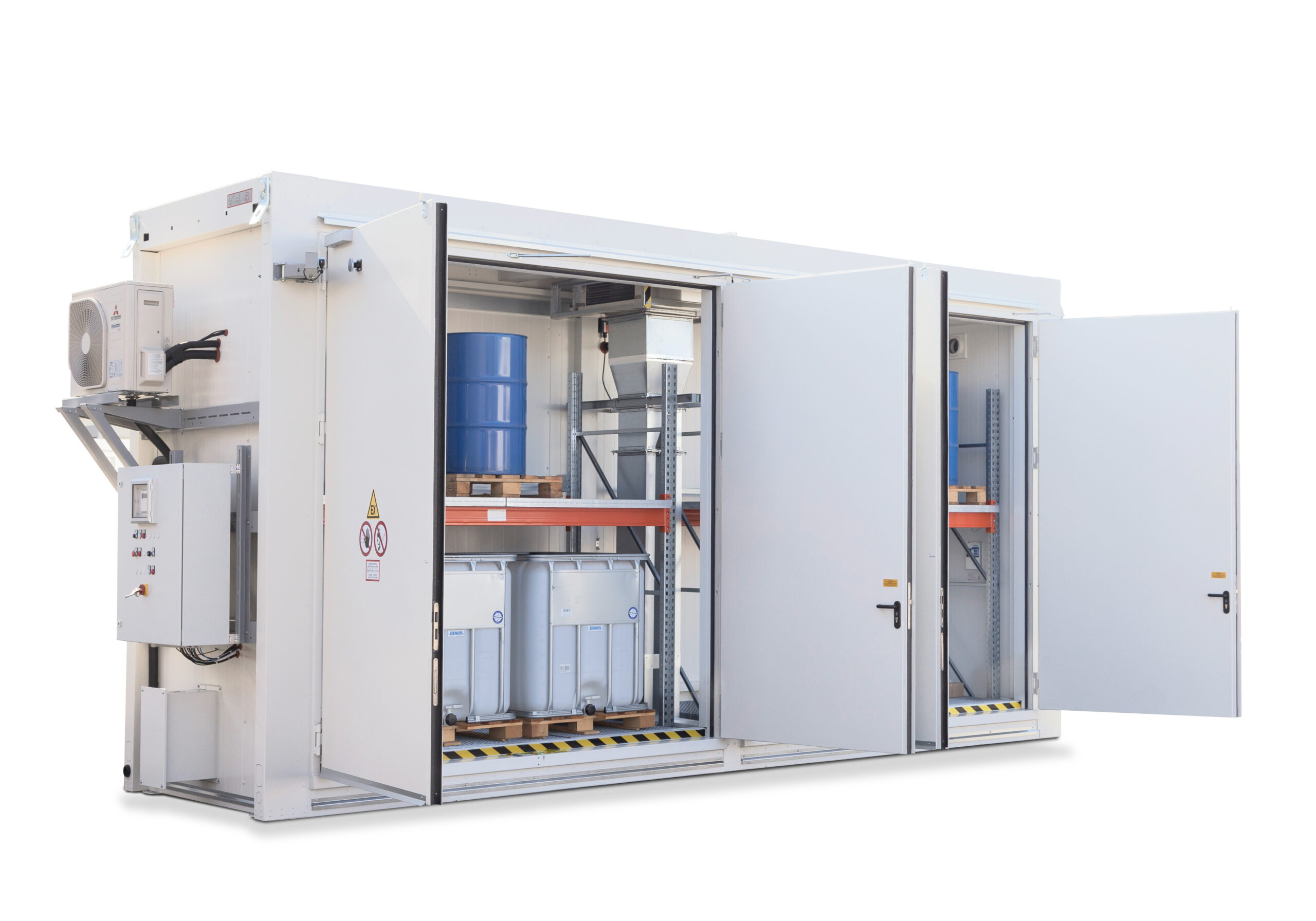

Heating/air conditioning system

refrigerate

be explosion-proof

fire detection

fire-extinguishing system

The leakage tray is lined with PP for storing corrosive substances.

More configurations

Product characteristics

FBM storage system can provide you with a full range of devices and a variety of options:

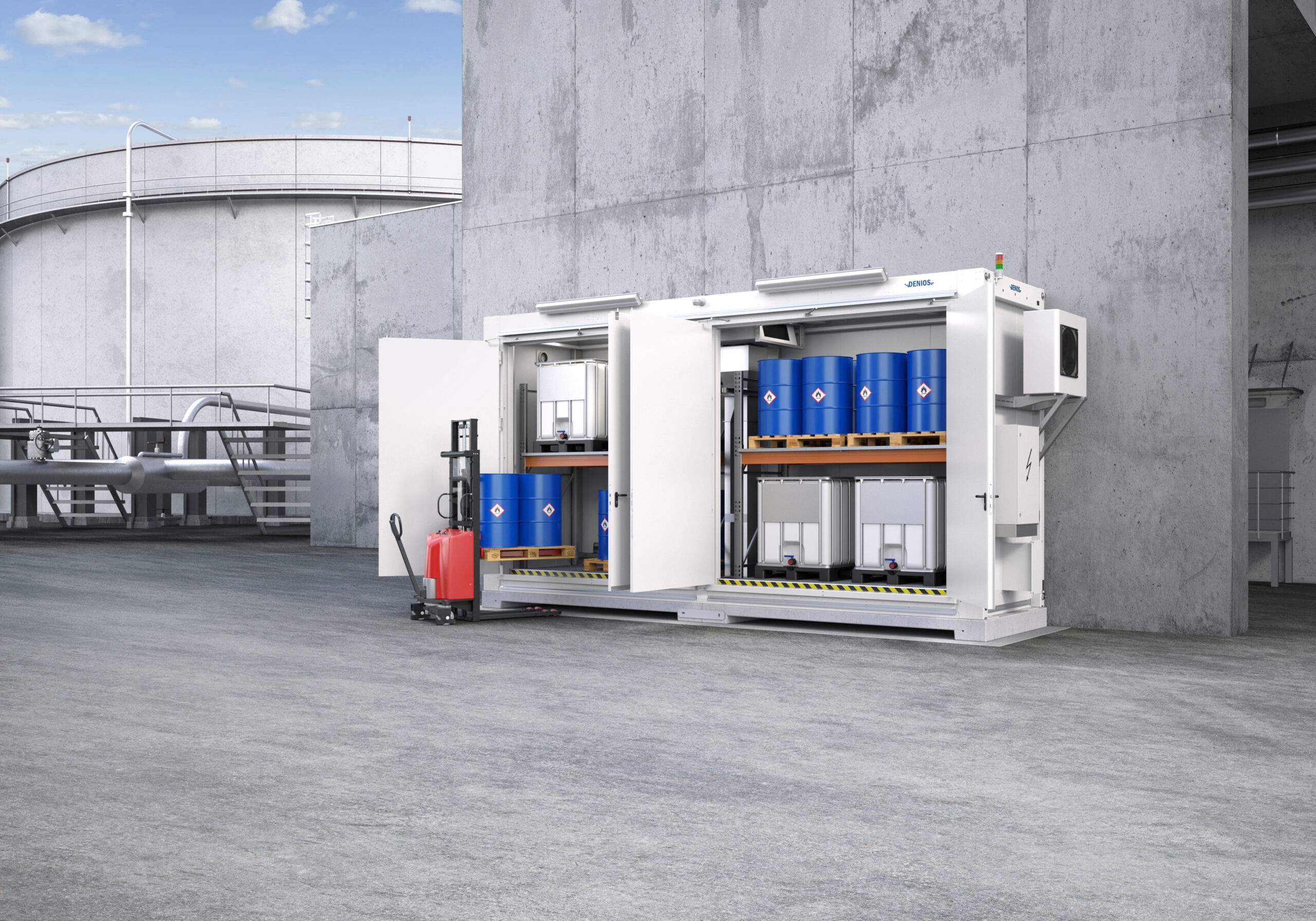

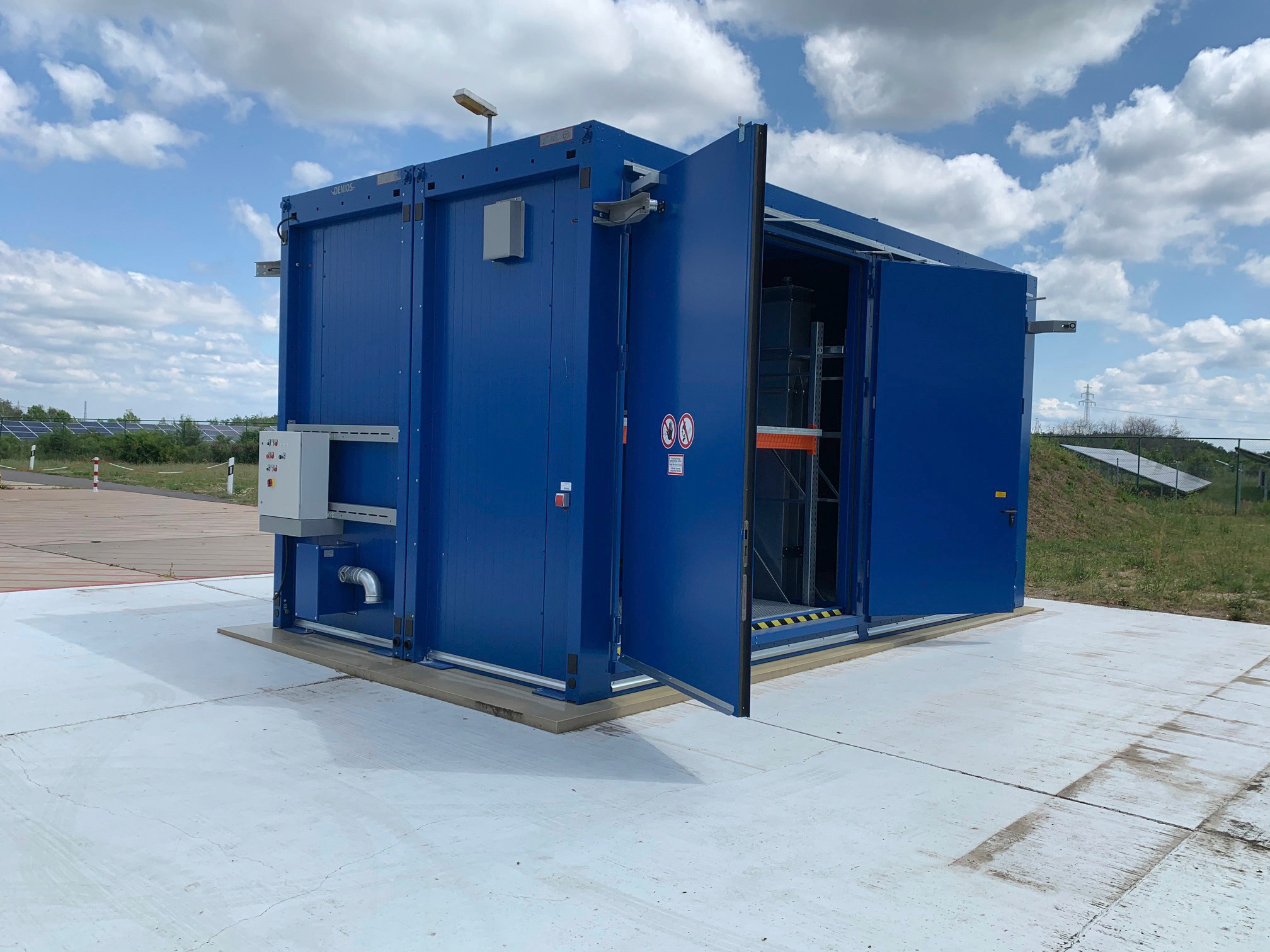

Suitable for indoor and outdoor use

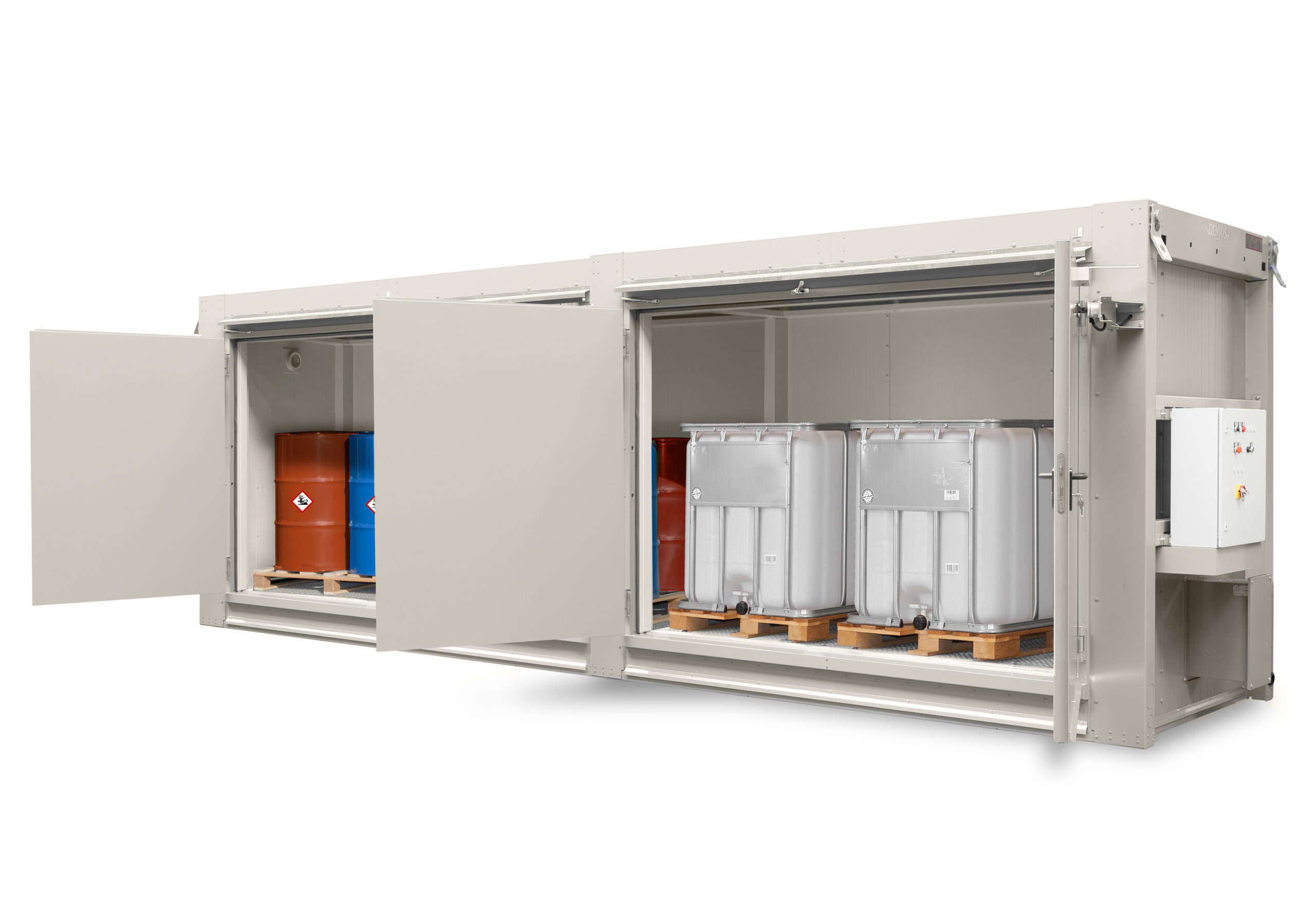

Single-shelf and double-shelf. One-shelf or two-shelf single and double-row storage

Thermal insulation: material grade A, thermal insulation value U value: 0.42W /(m2 K) Shelf bearing capacity: 1250 kg/m2.

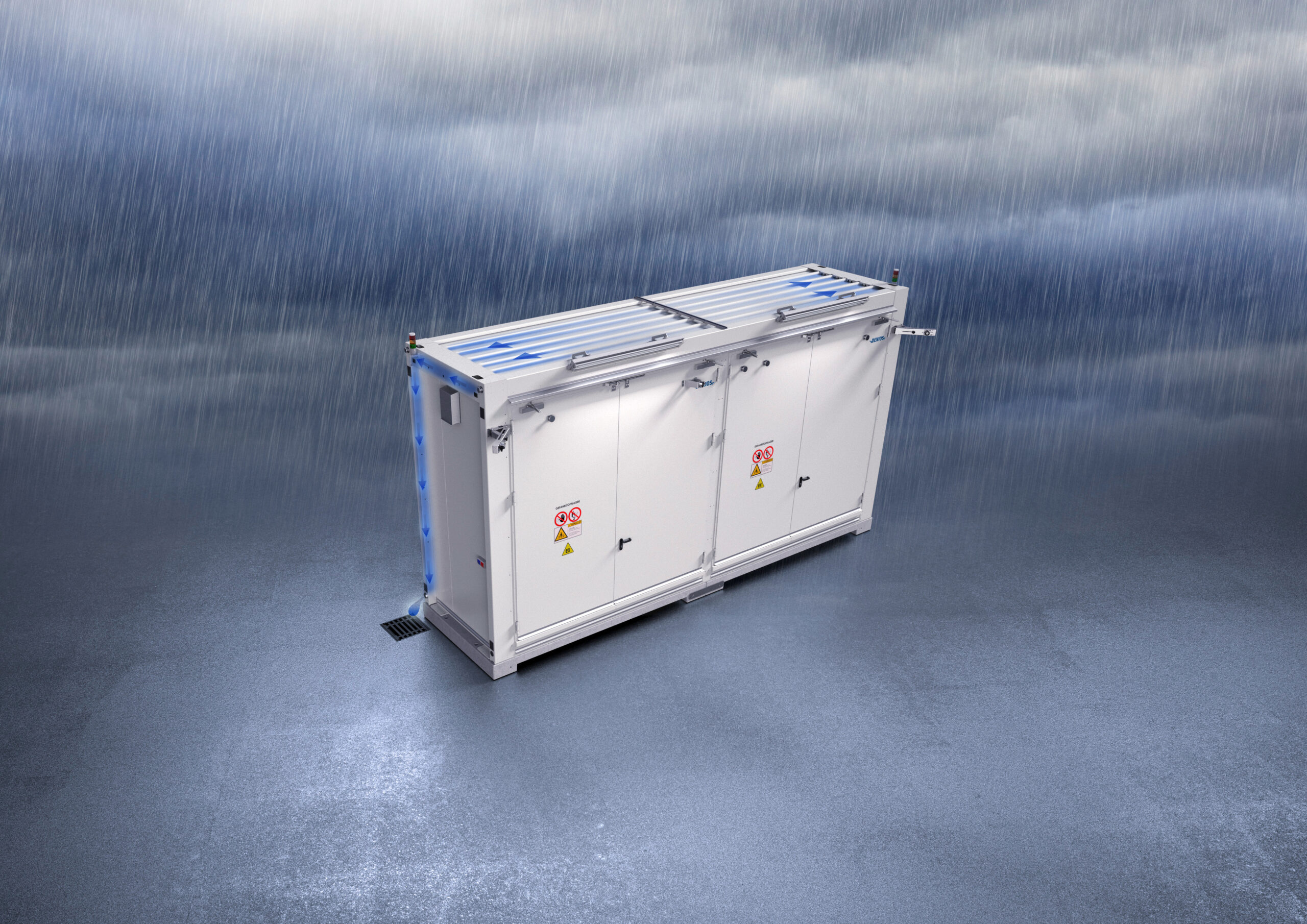

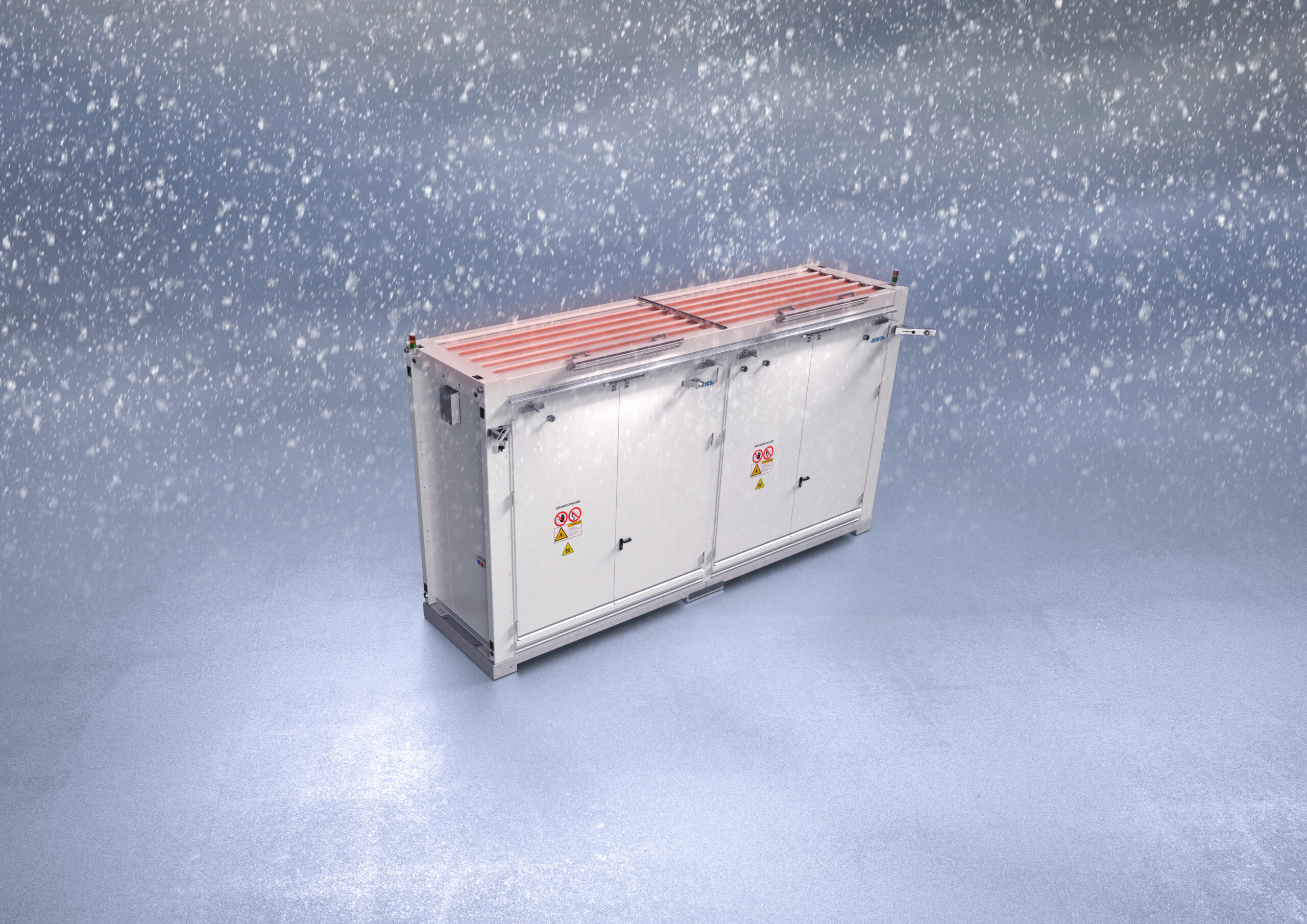

Snow load design sk = 2.5 kN /m2.

Wind-loaded dynamic load design qw = 0.5 kN/m2.

Product advantage

Internal and external double-sided fire resistance certification

The dye penetration test of the drain tray meets the standard of EN ISO3452-1.

Galvanized steel parts, anticorrosive and antirust.

Lengthened design, to meet a large number of hazardous chemicals storage.
