Design Concept：
- Designed for a wind speed of 0.5 m/s
- Suitable for perchloric acid application experiments
- Built-in water flushing system prevents perchlorate crystallization
- Highly corrosion-resistant surface, high cleanliness, and high-temperature resistance
- Butterfly-shaped tabletop design to contain spills
- Adjustable door with fall protection
| Name | MB – Fume Hood for Perchloric Acid | ||
|---|---|---|---|
| Model | MB – FGP – 120 | MB – FGP – 150 | MB – FGP – 180 |

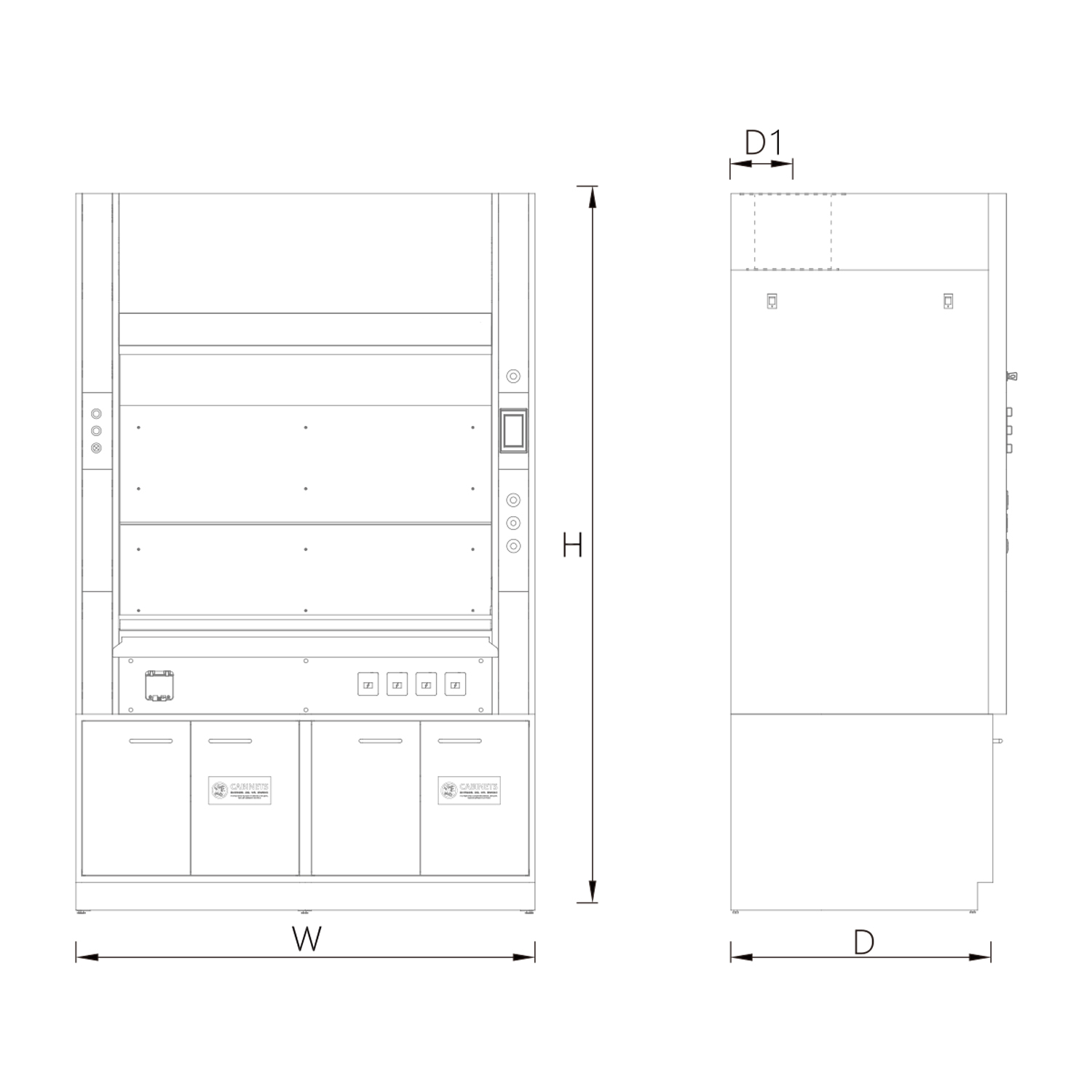

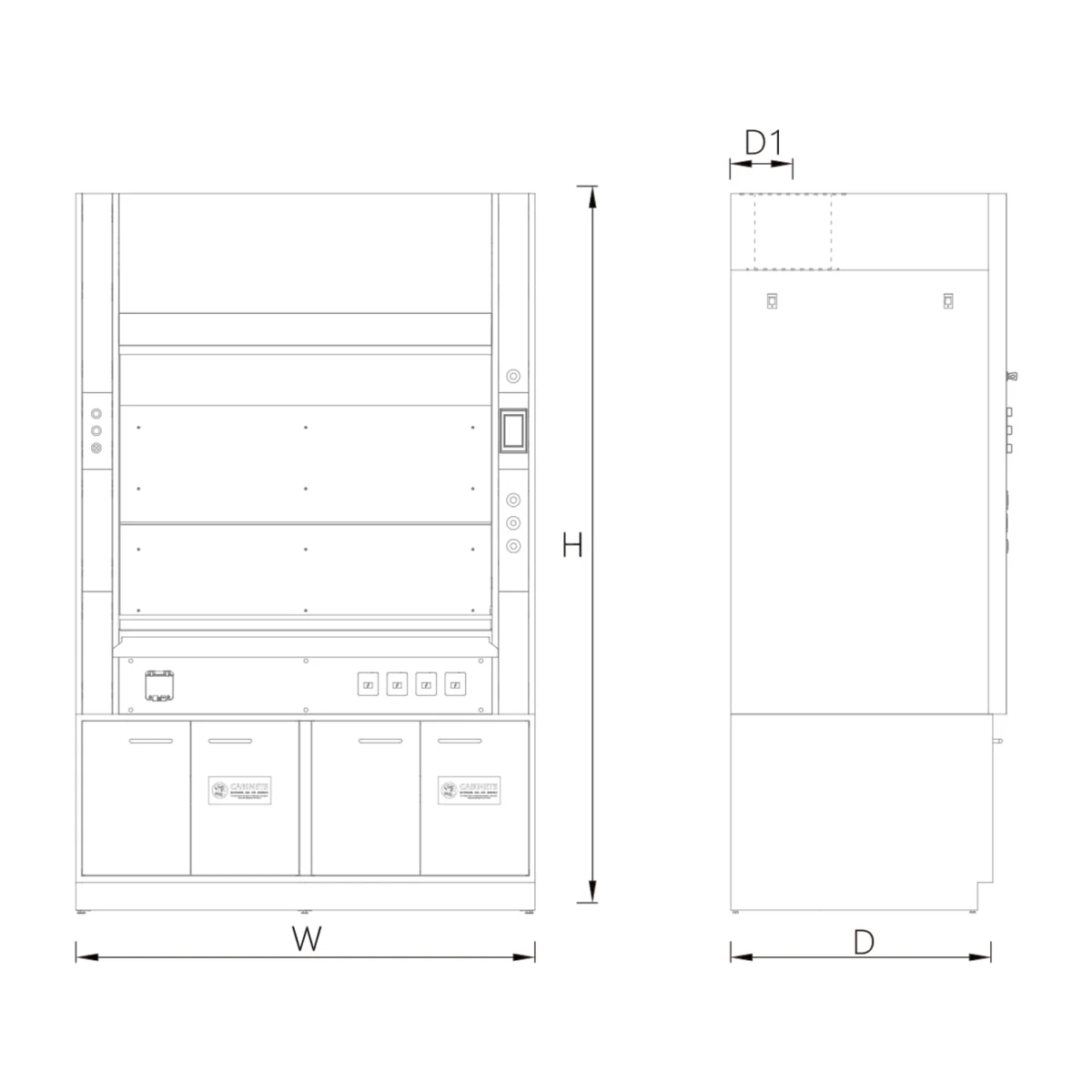

| External Dimensions (WDH) | 1200*900*2350mm | 1500*900*2350mm | 1800*900*2350mm |
| Operating Width | 920mm | 1220mm | 1520mm |
| Opening Height of Adjustment Door | ≥720mm | ||
| Internal Height | 1120mm | ||
| Internal Depth | 670mm | ||
| Diameter of Gas – collecting Hood | 250mm | 315mm | |
| Distance from the Center of Gas – collecting Hood to the Rear (D1) | 250mm | ||
| Illumination in Working Area | ≥500lux | ||
| Optional | VAV, CAV, water valve, gas valve | ||
| Main Structure | Cold – rolled steel plate / 316 stainless steel material | ||
| Adjustment Door | Explosion – proof glass | ||
| Countertop | 316 stainless steel material | ||
| Lining / Flow – guiding Plate | 316 stainless steel material | ||
| Bottom Cabinet | Four – door cabinet |
